Conçu pour offrir la meilleure performance analytique

Que ce soit pour une utilisation en laboratoire ou pour des procédés, vous pouvez compter sur notre gamme d’accessoires de haute qualité conçus pour fonctionner avec nos propres plates-formes GC – ou toute autre plate-forme GC que vous pourriez utiliser.

Actuators

Compact Pneumatic Actuator (CPA)

Designed to survive the lifetime of our PLSV valve. It can do well over 1,000,000 actuations and this, even at high temperature (180 ºC).

Compact integration with valve head, alternative to diaphragm valves.
Can exceed well over 1,000,000 actuations
Can operate continuously at up to 180 °C.
40 to 75 PSIG Actuation pressure range

Compact Electrical Actuator (CEA)

This is the most compact GC valve electrical actuator. Designed to offer the same long-term performance as the CPA, the CEA has been designed for portable application where actuation gas is not available.

Smallest electrical actuator footprint on the market.
Can exceed well over 1,000,000 actuations
Low power, 24 VDC
Digital dry contact actuation

Multi-Position Actuator (MPA)

Designed for our sample stream selection and Trap and Release valves, this multi-position actuator has been designed to offer high precision with a long lifetime.

High precision stepper motor
Position feedback encoder for precision
Auto-calibration feature
Available communication: USB, RS-485, Ethernet

Manual Actuator (MA)

Sometimes, there is no need to automate the actuation. For those applications, we offer a simple, yet robust handle.

Wear-proof actuation mechanism add-on for PLSV (WPA)

In addition to our long-lifetime actuator, we are offering an optional PLSV valve with a built-in variable sealing pressure mechanism. This revolutionary frictionless actuator mechanism, located inside the valve body, has an adjustable sealing force. The sealing force is changed during actuation. When the final position is reached, the mechanism is latched in position.
This results in less wearing and thus much longer lifetime for highly critical applications.

Learn more

Other PLSV accessories

Standoff

For applications that require the actuator to be separated from the valve body, we offer a comprehensive line of standoff from 2″ up to 6″.

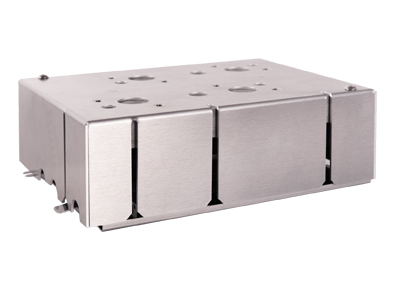

Agilent Compatible Valve Box Kit

To further make life easier for our customers, we are providing an upgrade kit that allows a simple upgrade of an Agilent GC with the PLSV technology. With this box, you will be able to adapt your Agilent GC and connect the valve directly to the Agilent actuator.

This upgrade kit comes with two temperature sensors and two heaters.
